What are the key specifications of the BT-28K?

Brand name: BITOP; Product name: Seamless sealing machine; Model: BT-28K; Frequency: 28 kHz.

1 / 5

BT-28K

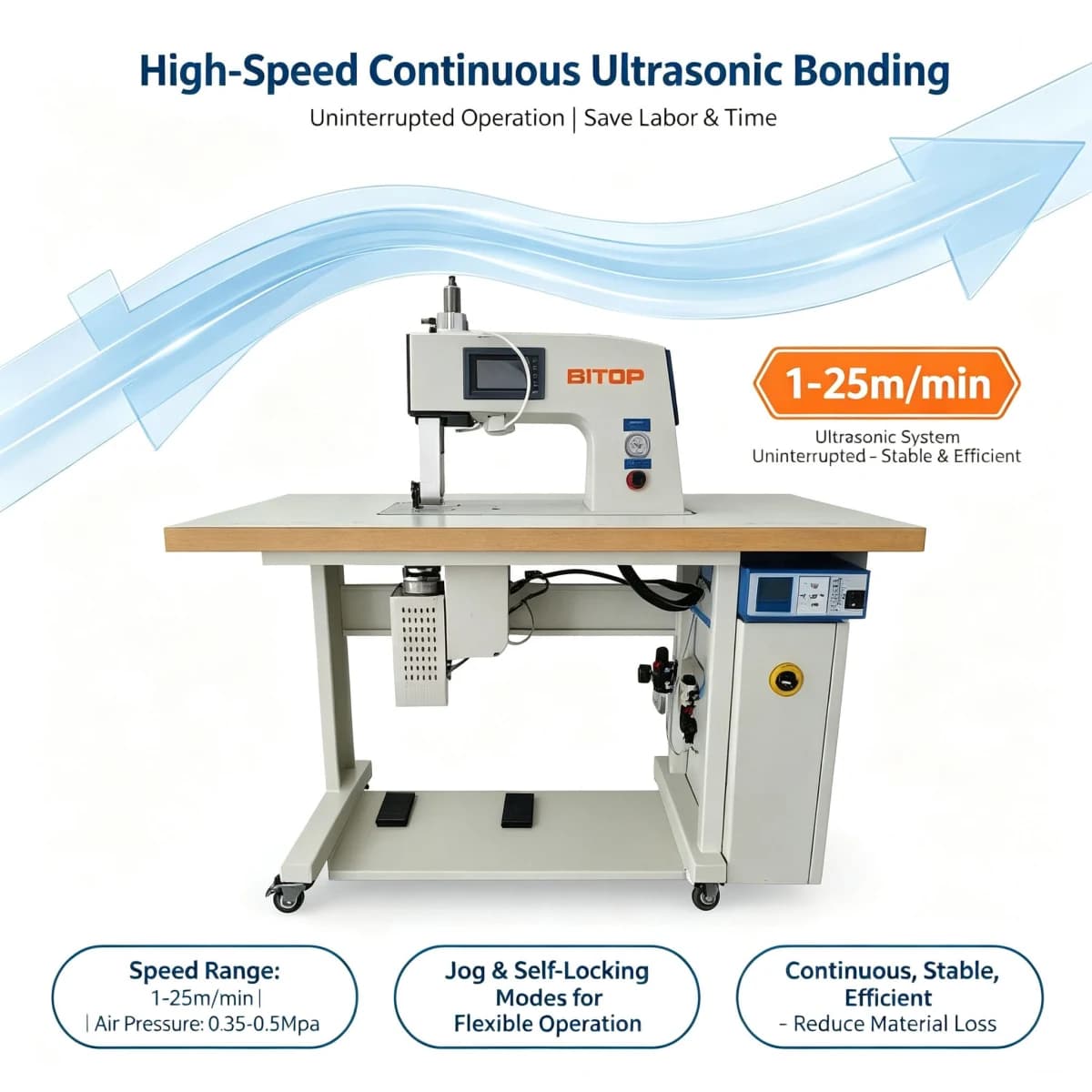

BT-28K Seamless Bonding Machine Ultrasonic Seamless Sealing Machine for Seamless Underwear, Sportswear, Outdoor Wear

The BITOP BT-28K ultrasonic seamless bonding machine joins and seals high-elasticity fabrics with 28 kHz ultrasonic energy instead of thread, giving a soft cut edge with no thread break and no damage to the fabric, so the material keeps its stretch. It runs continuously at 1-25 m/min at 1000 W, with jog and self-locking modes. A PLC touch screen with digital frequency tracking keeps output stable, and a double stepper motor drive allows differential speed adjustment, so parameters can be tuned per material. The 52 mm x 10 mm pattern roller is easy to replace, and custom patterns are available. Used for seamless underwear, sportswear, swimwear, outdoor wear and bulletproof vests. AC 220 V 50-60 Hz, air pressure 0.35-0.5 MPa. Supplied new from Zhejiang, China with a one year warranty on core components.

Request a quotation Chat on WhatsApp

What is the BT-28K?

BT-28K Seamless Bonding Machine Ultrasonic Seamless Sealing Machine for Seamless Underwear, Sportswear, Outdoor Wear (BT-28K) is an industrial sewing automation machine supplied and supported by Tex Edge Automation. 28 kHz ultrasonic bonding at 1-25 m/min with soft edge cutting, no thread break and no fabric damage on high-elasticity fabrics. It is used on garment and textile production lines, where it replaces manual handling with a repeatable automated cycle. Key specifications include Brand name of BITOP and Product name of Seamless sealing machine. Standard equipment includes 28 kHz ultrasonic bonding at 1000 W for continuous, uninterrupted operation, Working speed 1-25 m/min, with jog and self-locking modes for flexible operation, PLC touchscreen control with digital frequency tracking for high stability.

Power: 1000 W
Working speed: 1-25 m/min
28 kHz ultrasonic bonding at 1000 W for continuous, uninterrupted operation

Function Overview

28 kHz ultrasonic bonding at 1000 W for continuous, uninterrupted operation
Working speed 1-25 m/min, with jog and self-locking modes for flexible operation
PLC touchscreen control with digital frequency tracking for high stability
Double stepper motor drive with differential speed adjustment
Replaceable pattern roller, 52 mm diameter and 10 mm wide, custom patterns available
Soft edge cutting with no thread break and no fabric damage, preserving the fabric's elasticity
Suits seamless underwear, sportswear, swimwear, outdoor wear and bulletproof vests
Manufacturer certifications: BSCI, CE, CCC, ISO and IAF

Specifications

Brand name	BITOP
Product name	Seamless sealing machine
Model	BT-28K
Frequency	28 kHz
Power	1000 W
Voltage	AC 220 V, 50-60 Hz
Working speed	1-25 m/min
Air pressure	0.35-0.5 MPa
Pattern roller diameter	52 mm
Pattern roller width	10 mm
Core components	PLC, Motor
Condition	New
Applicable industries	Garment shops, manufacturing plant, machinery repair shops
Place of origin	Zhejiang, China
Warranty	1 year
Warranty of core components	1 year
Video outgoing-inspection	Provided
Machinery test report	Not available
Marketing type	Ordinary product
Customization	Minor, drawing-based, sample-based and full customization

Frequently asked questions

What is the BT-28K?: 28 kHz ultrasonic bonding at 1-25 m/min with soft edge cutting, no thread break and no fabric damage on high-elasticity fabrics.
What are the key specifications of the BT-28K?: Brand name: BITOP; Product name: Seamless sealing machine; Model: BT-28K; Frequency: 28 kHz.
What are the main features of the BT-28K?: 28 kHz ultrasonic bonding at 1000 W for continuous, uninterrupted operation; Working speed 1-25 m/min, with jog and self-locking modes for flexible operation; PLC touchscreen control with digital frequency tracking for high stability; Double stepper motor drive with differential speed adjustment;
